12V 140A Voltage Sensitive Split Charge Relay VSR for Camper Car Smart Battery Isolator Charge 2 Battery Bank Car Auto Parts
$31.56 – $56.82 (-49%)
Feature:
After the engine is turned off, the left seat battery discharges to the upper left load device.
When the battery voltage drops below 12.8V, the VSR is disconnected.
The starting battery on the right will not discharge the device.
When the battery on your left is not charged, it runs out.
At least there is a small battery on the right, which allows you to start the engine.
Specification:

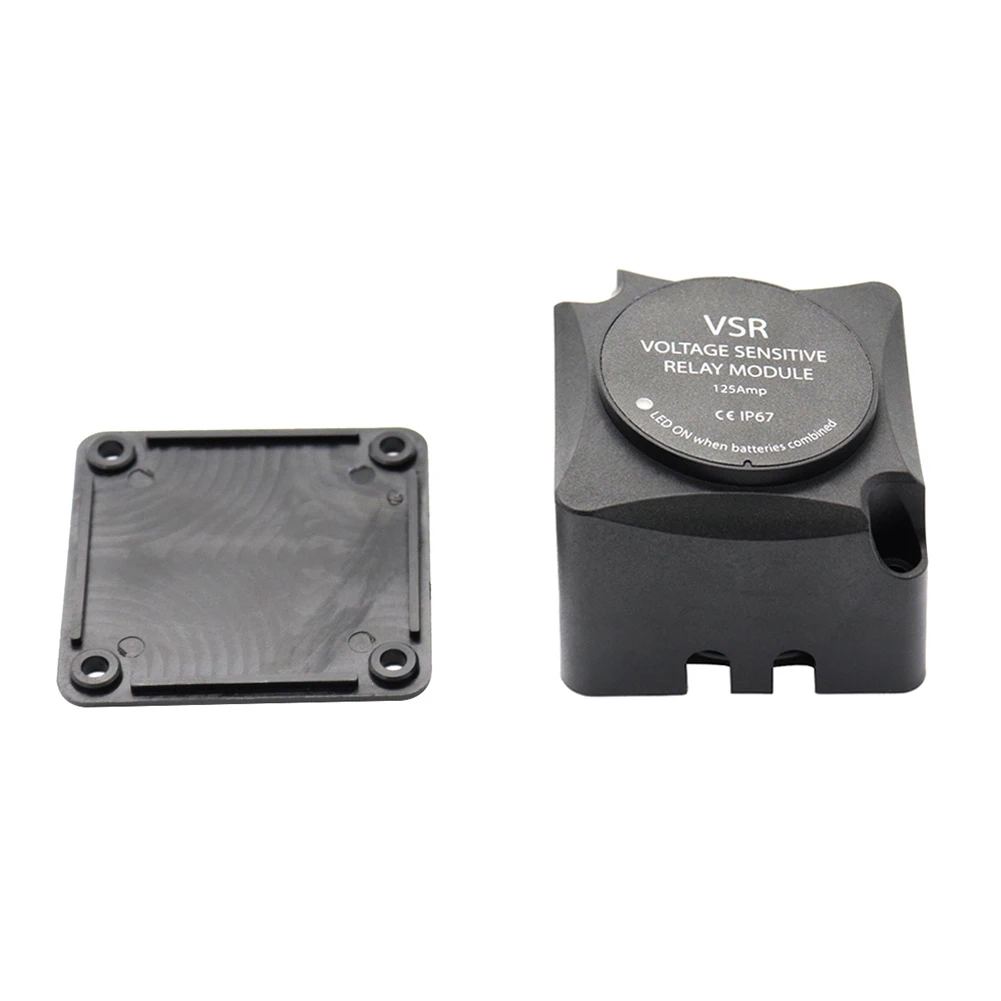

Surface or panel mounting options provide flexibility during installation
When the engine is off, the storage mode can achieve zero power consumption
Nominal voltage: DC 12V
Combined voltage: DC 13.3V
Open circuit voltage: DC 12.8V
Continuous rating: DC 125A
Intermittent score: DC 140A
Power consumption: 10mA (standby);330mA (working);0mA (storage)
Terminal: M6 (1 / 4rdquo)

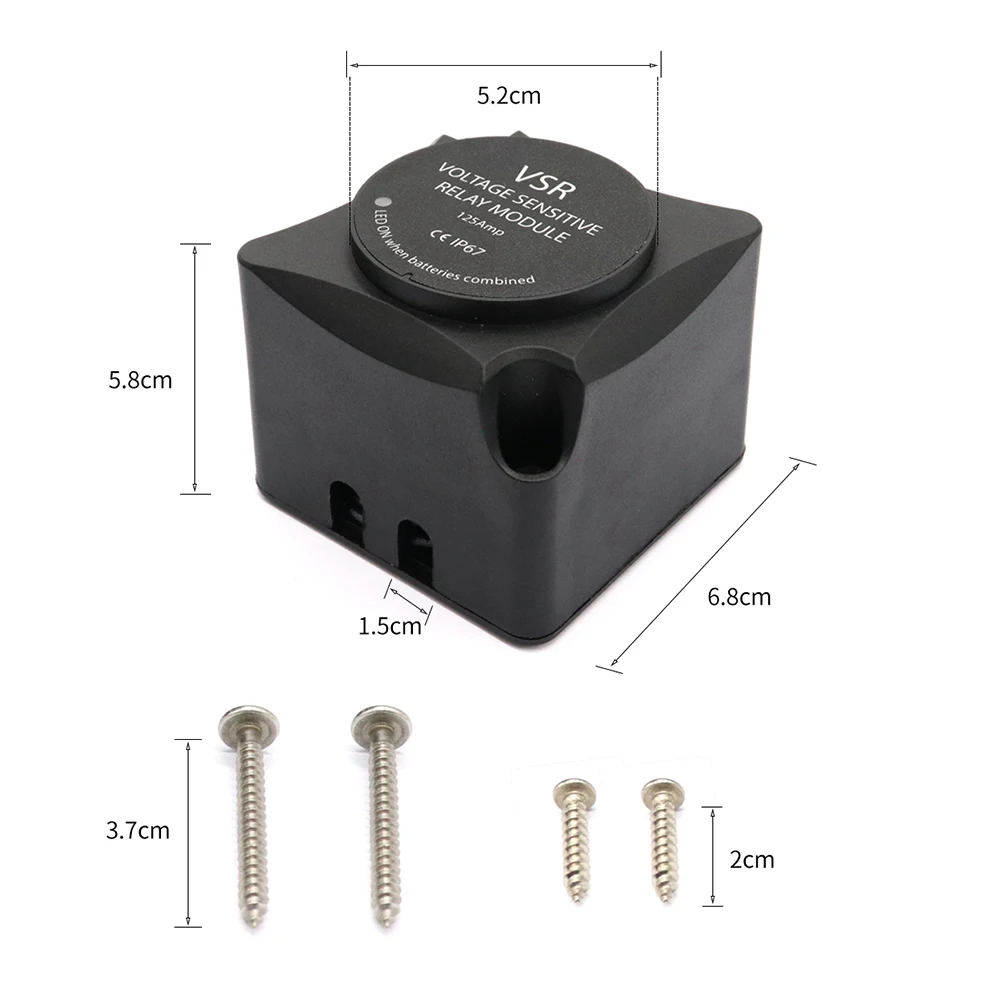

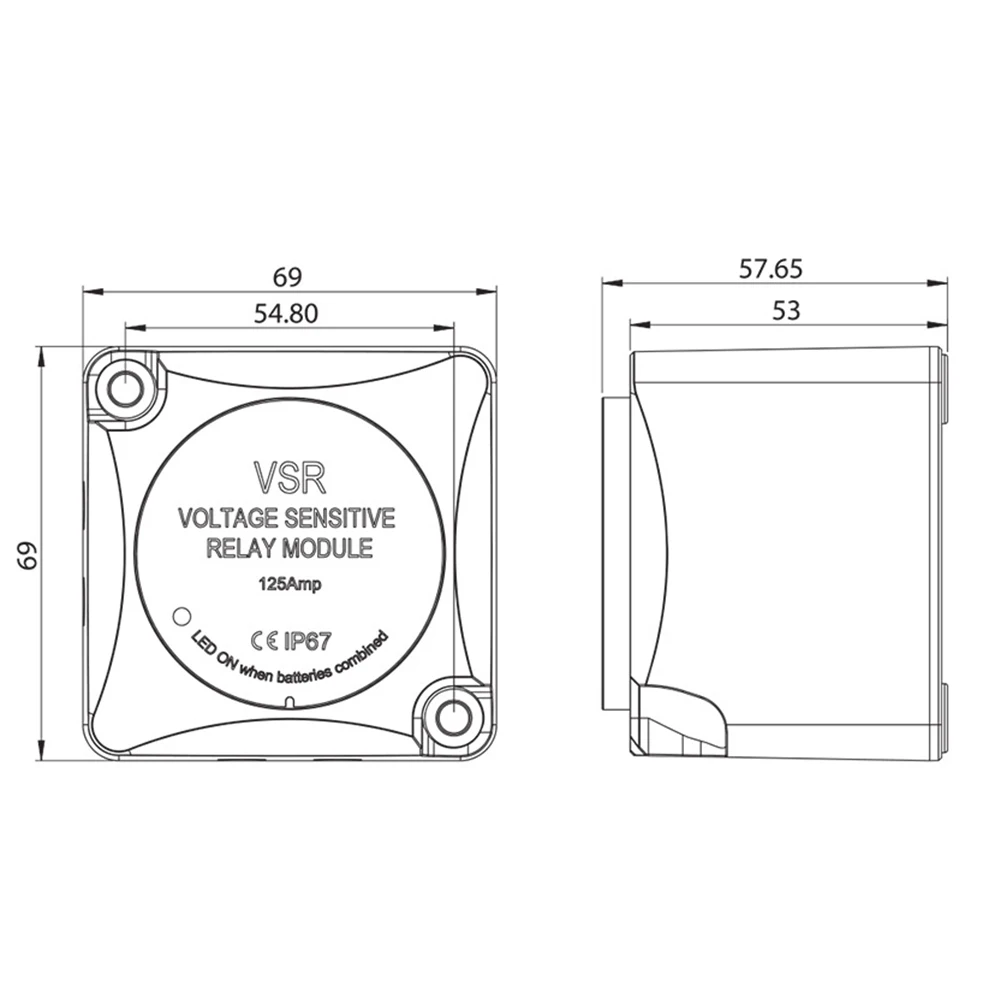

Size: 6.8 * 6.8 * 5.8cm

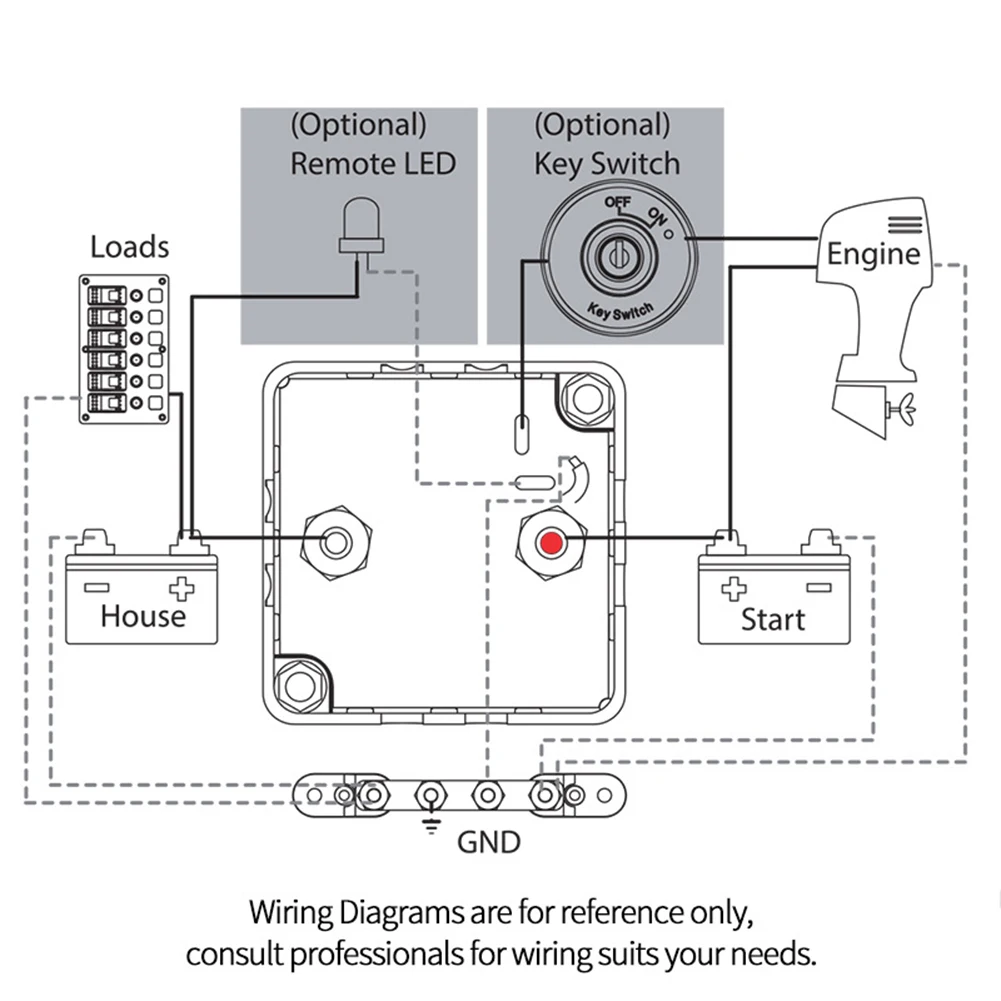

Installation:
1. Disconnect the positive terminal from the battery.
2. Mount the VSR on the required surface (surface mount) or panel (panel mount)
3. Connect the starting battery to the terminal with red paint (sensing terminal), and then connect the house battery to the other terminal on the VSR.
4. Connect the black cable to the DC ground.
5. (Remote LED) Cut the black LED loop wire and connect one end to the negative pole of the remote LED. Connect the 12V power supply to the positive electrode of the LEDrsquos; use insulating tape or potting glue to seal the other end of the cut loop wire.
6. (Storage Mode) Cut off the red looped wire, and connect one end to the engine start/key switch (ignition terminal) or a dedicated ON-OFF switch. If the switch is turned off, the VSR will be turned off with zero power consumption; otherwise, the VSR will be turned off.
Seal the other end of the cut loop wire with insulating tape or potting glue.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Voltage Sensitive Relay
4 x Screws
Additional information
| Brand Name | VODOOL |
|---|---|
| Origin | Mainland China |
| Item Height | 5.8cm |
| Item Type | Car Relays |
| Item Weight | 205g |
| OEM NO. | / |
| Year | / |
| Material Type | / |
| Item Length | 6.8cm |
| Special Features | Voltage Sensitive Relay |
| Item Width | 6.8cm |
| Model Name | Voltage Sensitive Relay |
-
