Bus Bar for Truck Boat RV 48V 100 150 Amp Busbar Buss Bar with Clear Transparent Cover
Feature:
1. High voltage, high current, wide application range and high safety factor.
2. The base is made of flame-retardant ABS plastic.

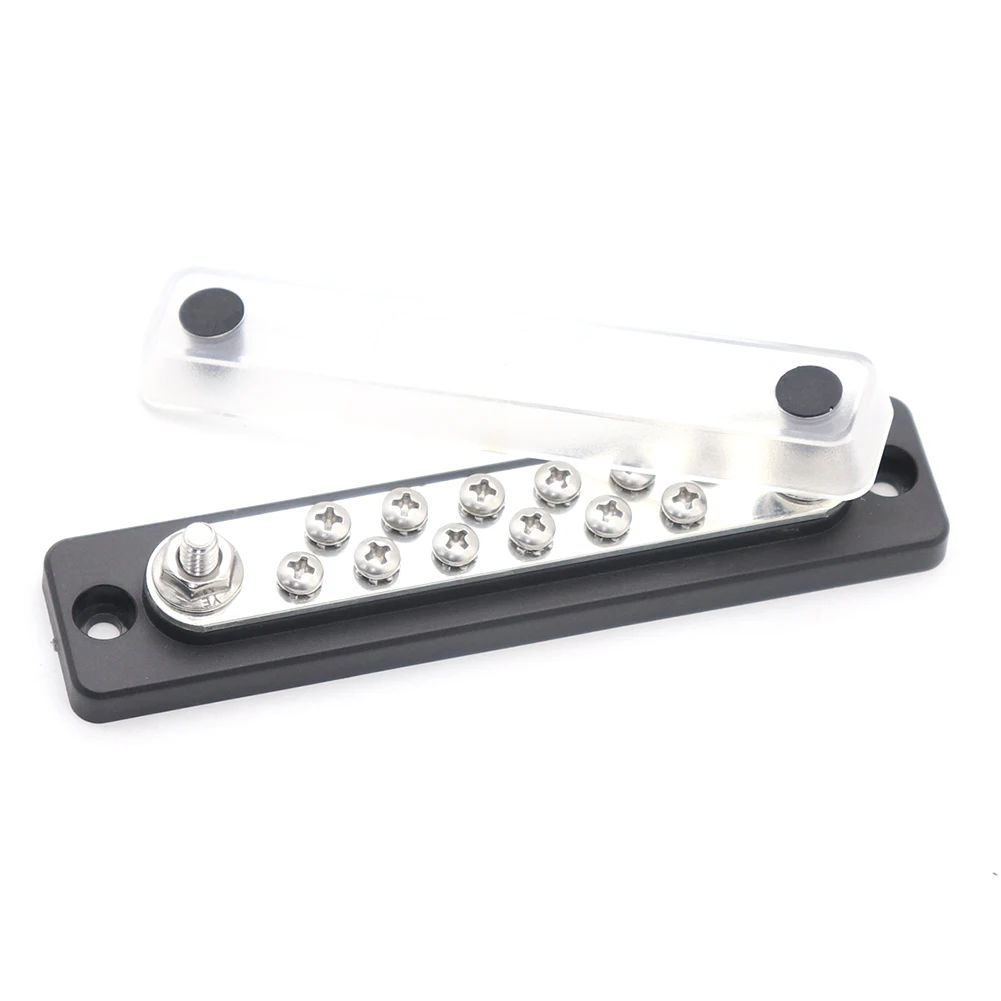

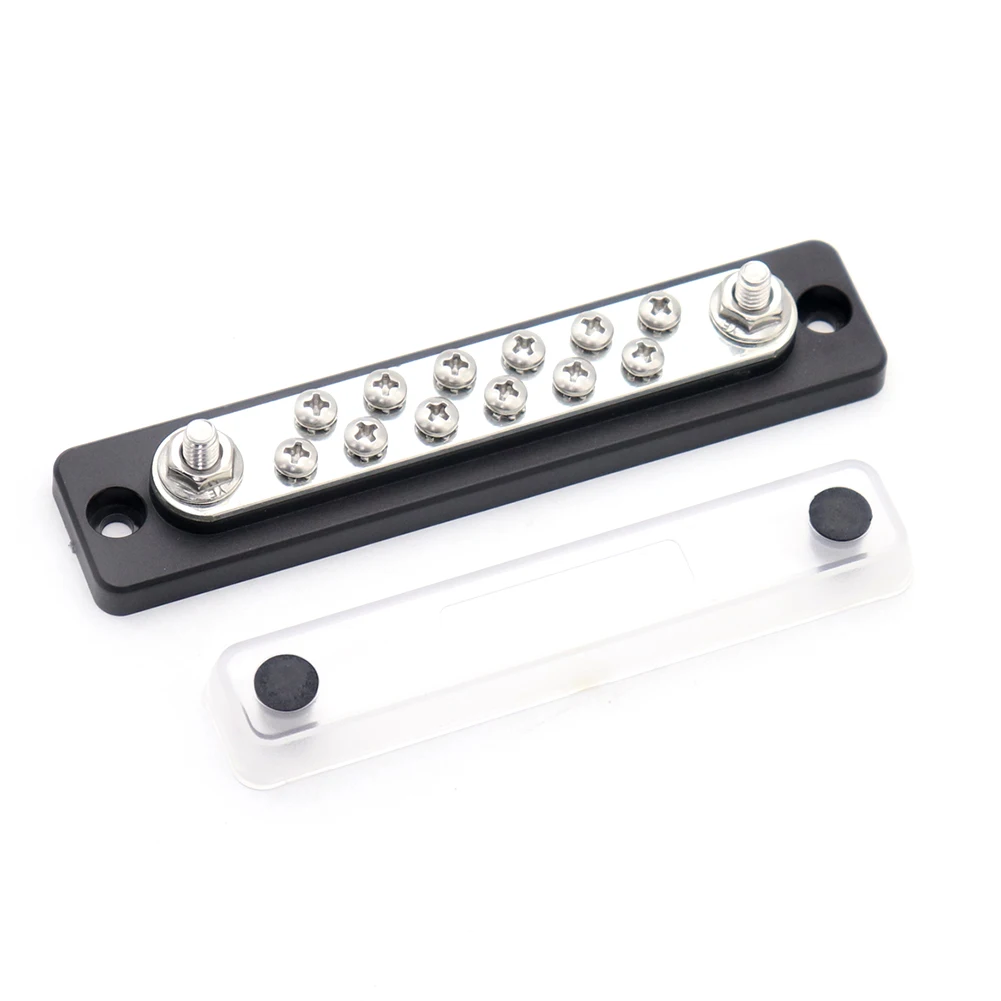

3. Can be used with insulating cover.
4. Various specifications are available, fine workmanship.
5. The serrated flange nut design helps to install the ring terminal correctly.
6. Suitable for various environments such as trucks, RVs, touring vehicles, boats, etc.
Feature:
1. High voltage, high current, wide application range and high safety factor.
2. The base is made of flame-retardant ABS plastic.
3. Can be used with insulating cover.
4. Various specifications are available, fine workmanship.
5. The serrated flange nut design helps to install the ring terminal correctly.
6. Suitable for various environments such as trucks, RVs, touring vehicles, boats, etc.

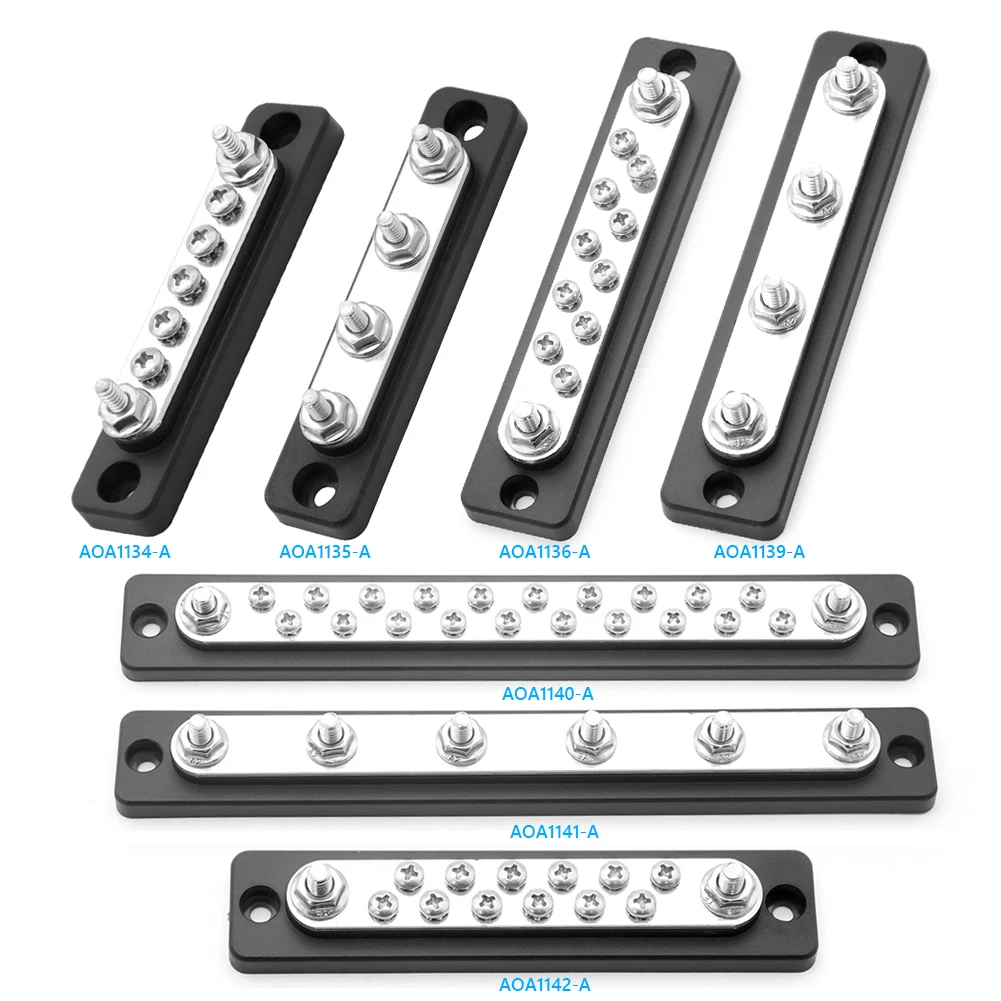

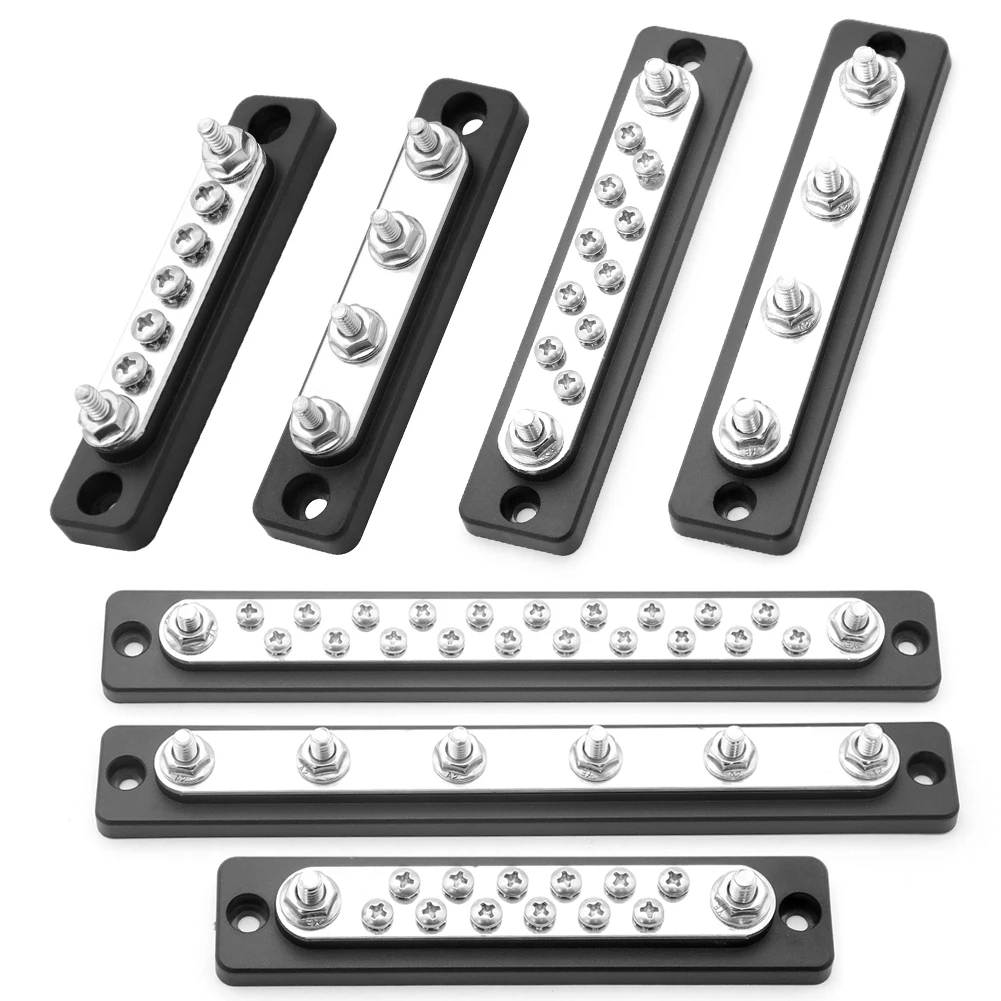

Specification:

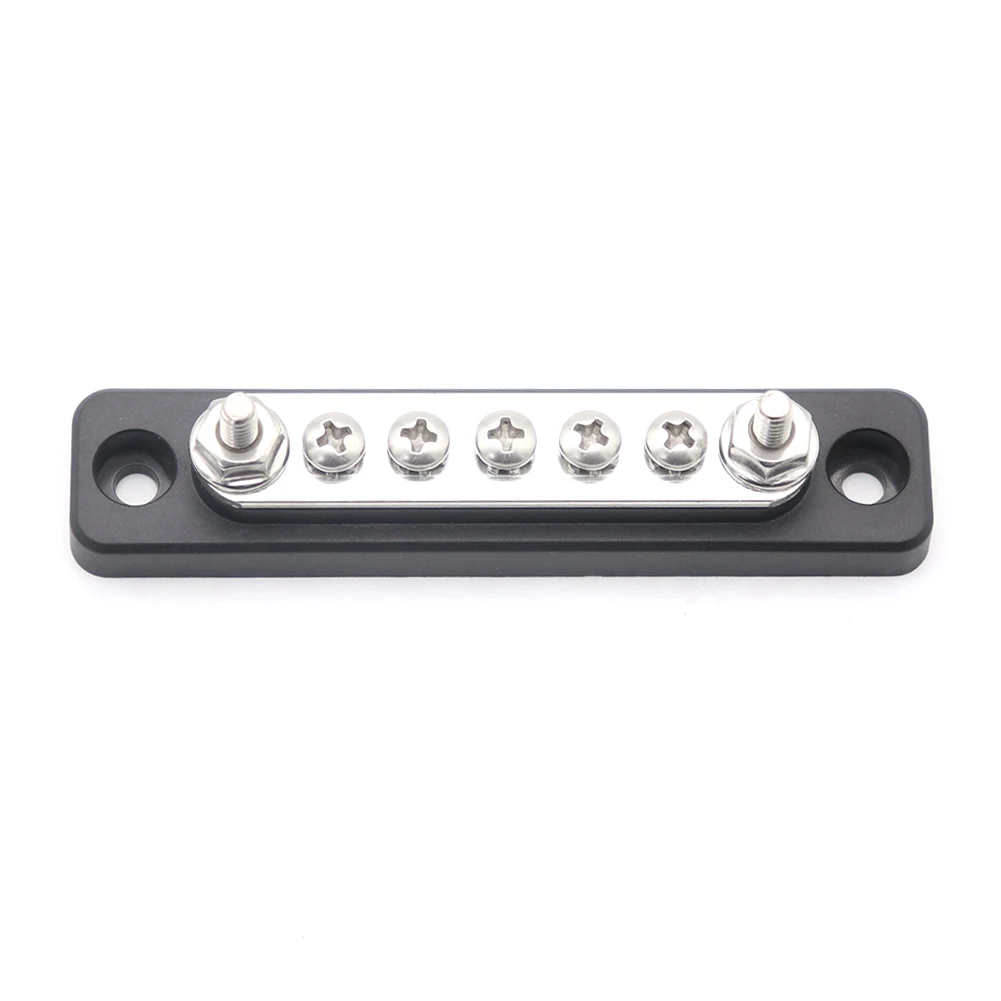

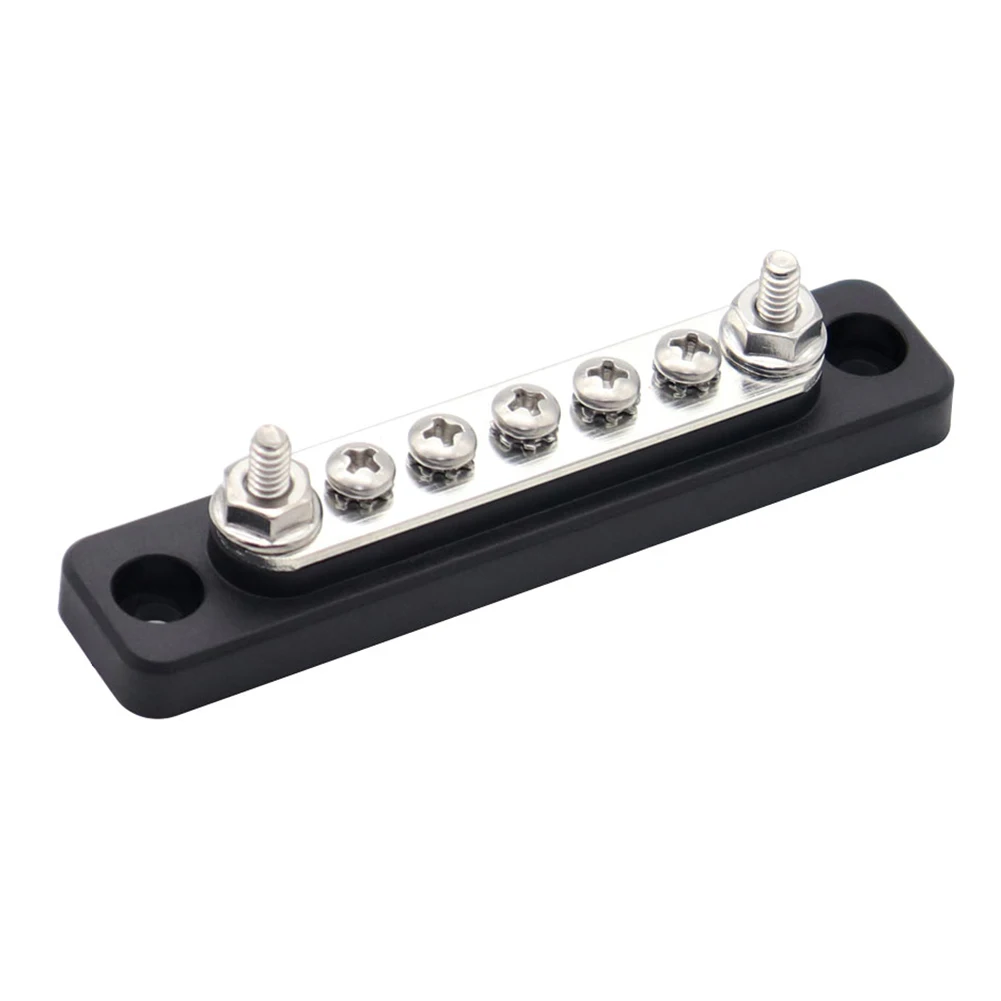

AOA1134-A
Product weight: 65g
Product size: 107*23*28mm/4.21*0.91*1.10″
Continuous current: 100A DC
Rated voltage: DC 48V
Product material: stainless steel bolts and screws, tinned copper busbar, flame-retardant ABS base
Terminal: 5 x #8/32 screws, 2 x 3/16″-24 studs
AOA1135-A
Product weight: 70g
Product size: 107*23*28mm/4.21*0.91*1.10″
Continuous current: 100A DC
Rated voltage: DC 48V
Product material: stainless steel bolts and screws, tinned copper busbar, flame-retardant ABS base
Terminal: 4 x 3/16-24 studs

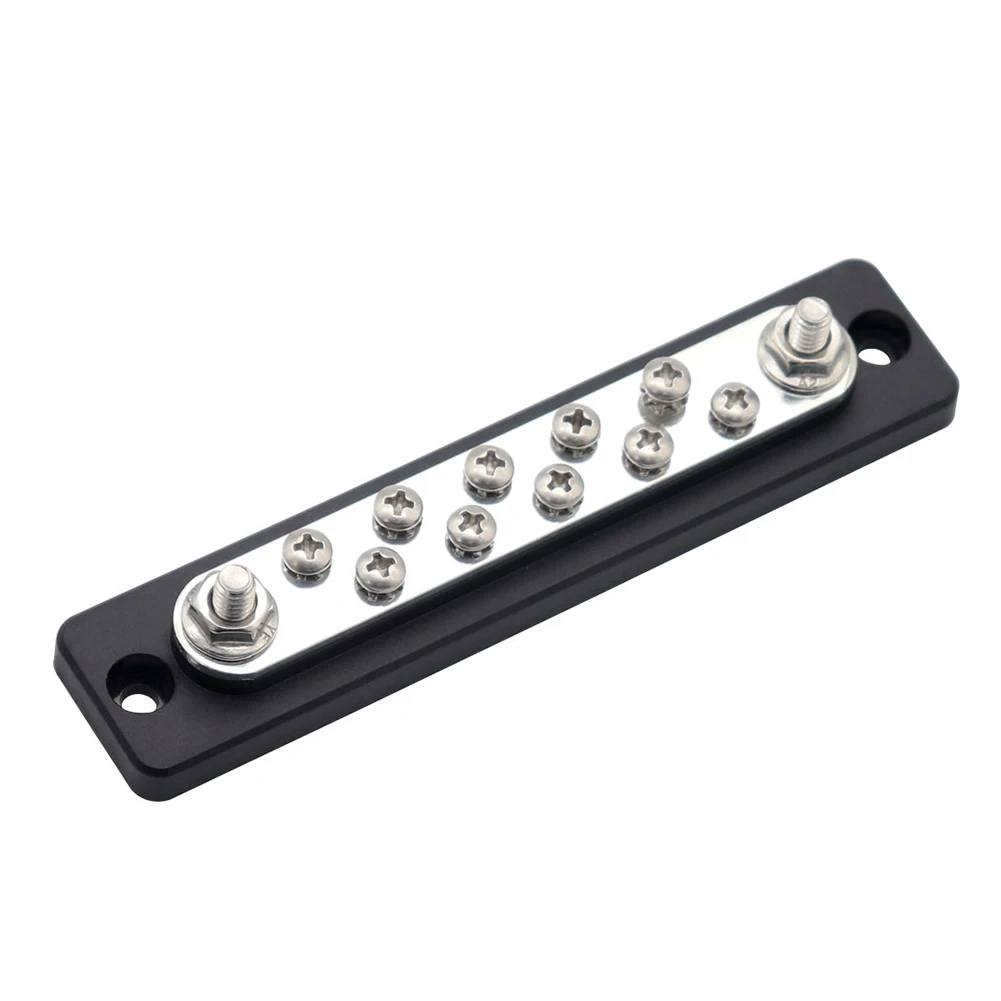

AOA1136-A
Product weight: 120g
Product size: 149*32*29mm/5.87*1.26*1.14″
Continuous current: 150A DC
Rated voltage: DC 48V
Product material: stainless steel bolts and screws, tinned copper busbar, flame-retardant ABS base
Terminal: 2 x 1/4″-20 studs, 10 x #8-32 screws

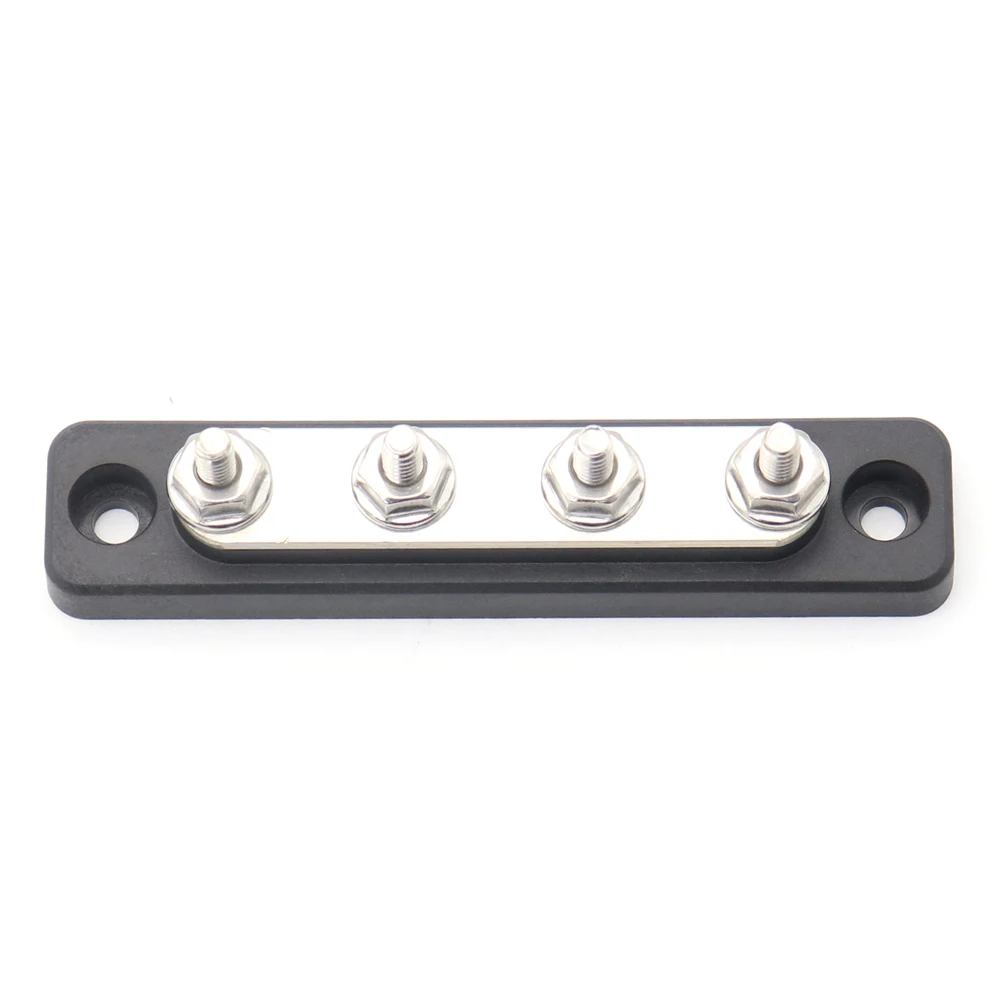

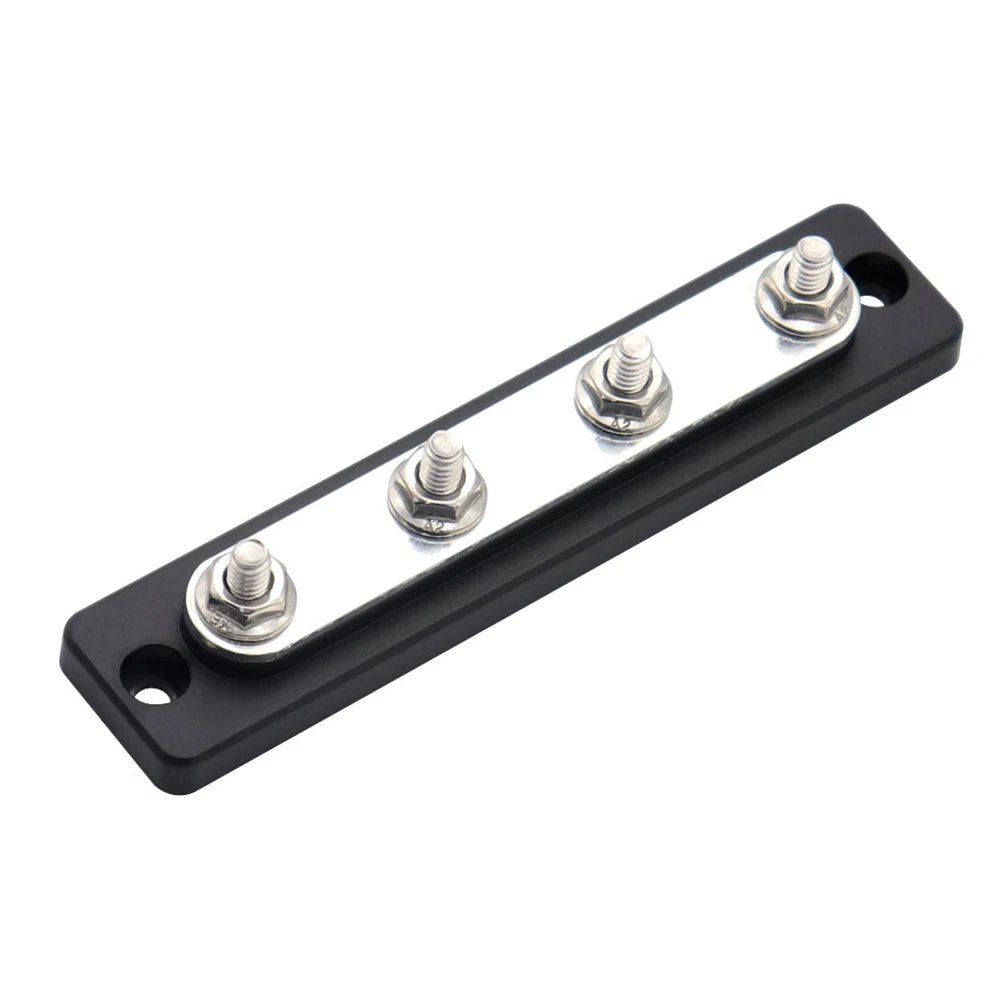

AOA1139-A
Product net weight: 122g
Product size: 149*32*29mm/5.87*1.26*1.14″
Continuous current: 150A DC
Rated voltage: DC 48V
Product material: stainless steel bolts and screws, tinned copper busbar, flame-retardant ABS base
Terminal: 4 x 1/4″-20 studs

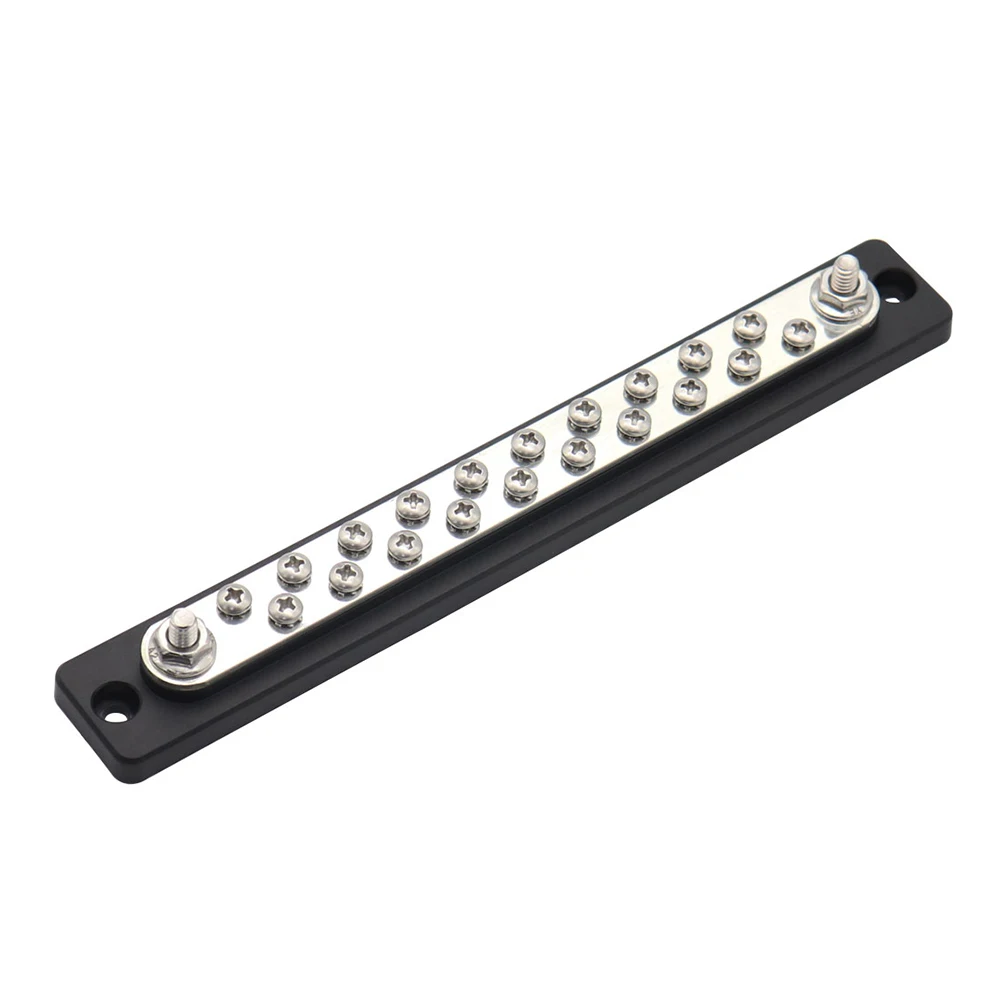

AOA1140-A
Product net weight: 187g
Product size: 232*32*29mm/9.13*1.26*1.14″
Continuous current: 150A DC
Rated voltage: DC 48V
Product material: stainless steel bolts and screws, tinned copper busbar, flame-retardant ABS base
Terminal: 2 x 1/4″-20 studs, 20 x #8-32 screws

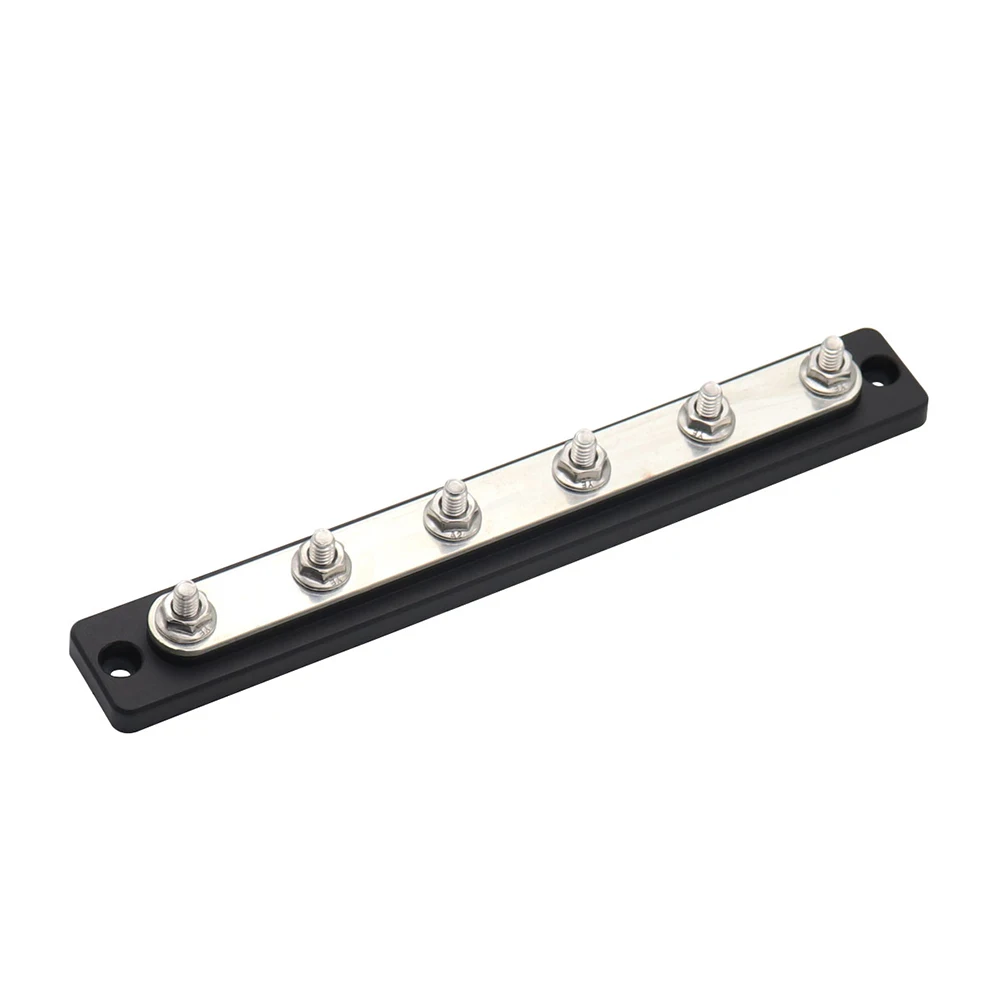

AOA1141-A
Product net weight: 172g
Product size: 232*32*29mm/9.13*1.26*1.14″
Continuous current: 150A DC
Rated voltage: DC 48V
Product material: stainless steel bolts and screws, tinned copper busbar, flame-retardant ABS base
Terminal: 6 x 1/4″-20 studs

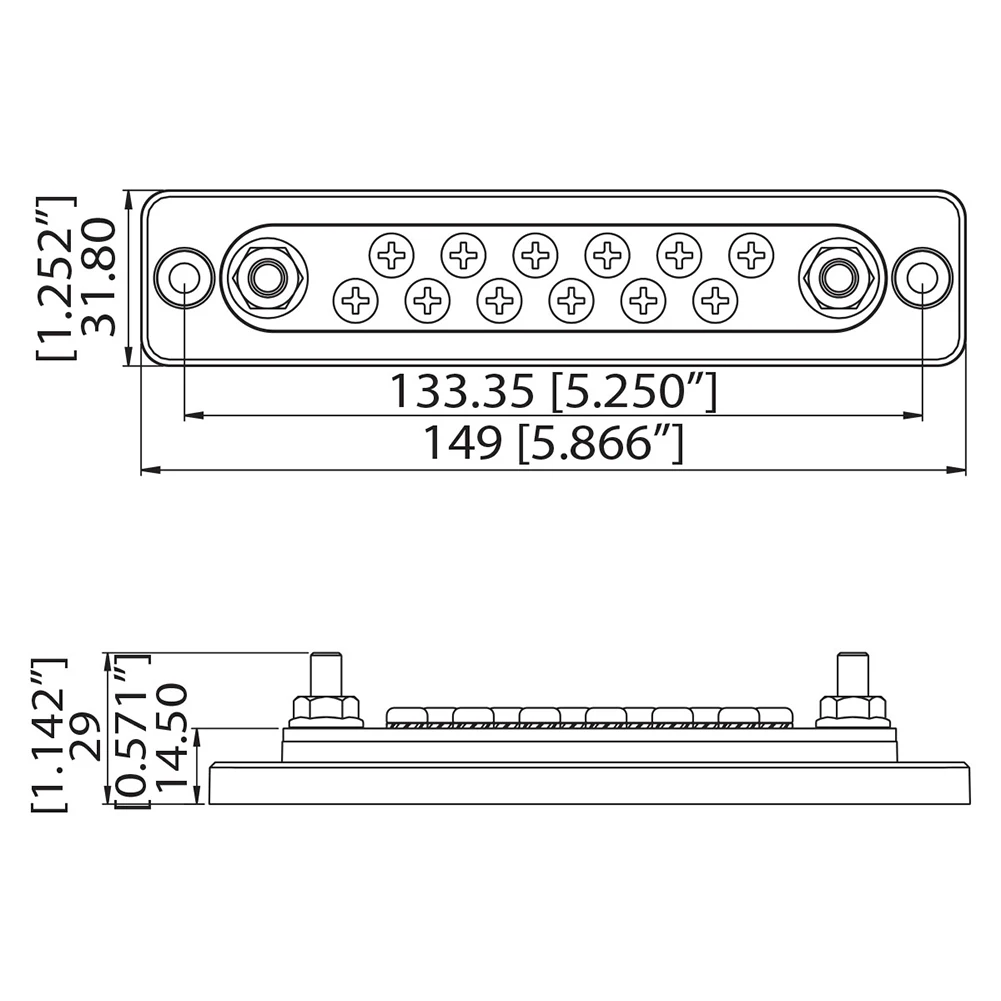

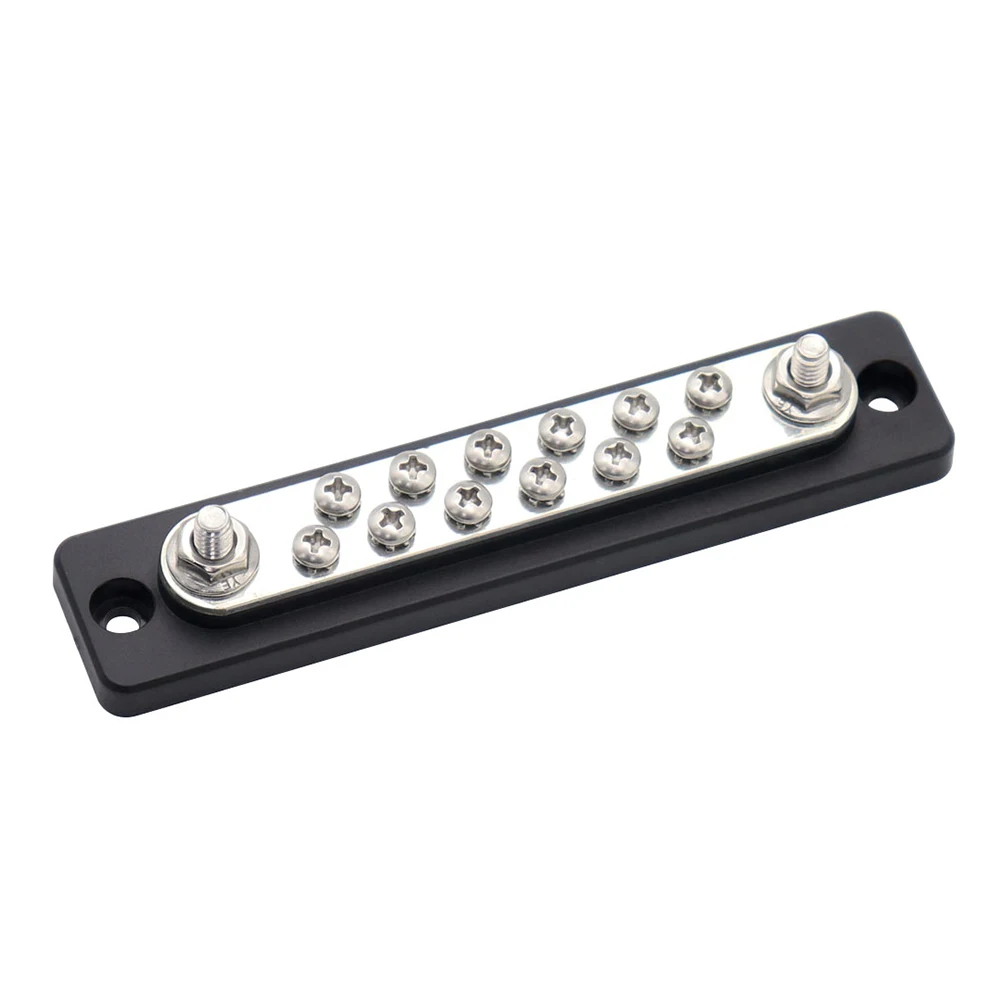

AOA1142-A
Product net weight: 123g
Product size: 149*32*29mm/5.87*1.26*1.14″
Continuous current: 150A DC
Rated voltage: DC 48V
Product material: stainless steel bolts and screws, tinned copper busbar, flame-retardant ABS base
Terminal: 2 x 1/4″-20 studs, 12 x #8-32 screws
Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
1 Set X Bus Bar
[RelatedpruductTemplate] [/RelatedpruductTemplate]
Additional information
| Brand Name | VODOOL |
|---|---|
| Origin | Mainland China |
| Item Height | 23 mm |
| Item Diameter | / |
| Year | 2021 |
| Material Type | stainless steel |
| Item Length | 100 mm |
| Special Features | / |
| Item Width | 28 mm |
| Model Name | Bus Bar |
-
