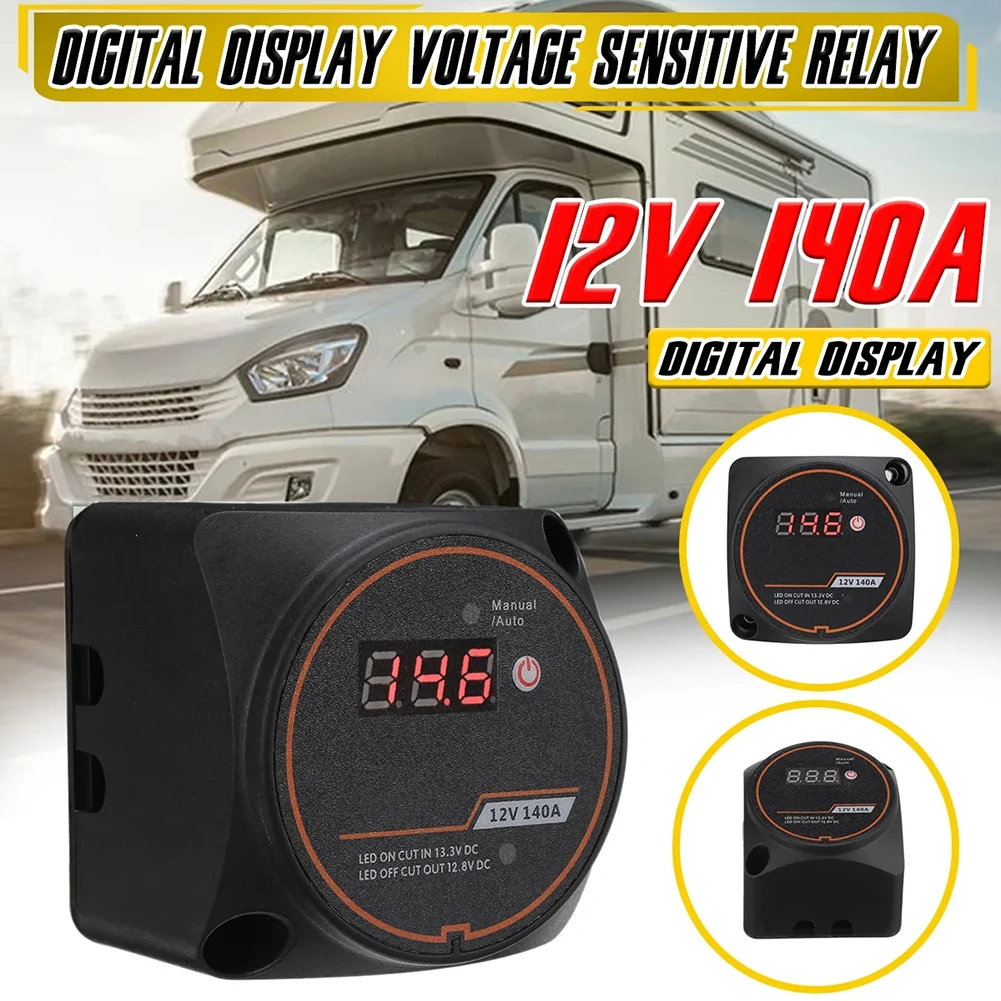

12V 140A Split Charge Relay Voltage Sensitive Battery Smart Isolator Relays for Camper Car RV Yacht Steamer Automobile Part
$52.02 – $65.91 (-45%)
Automatically combines two batteries when charging and automatically isolates two batteries when not charging.
Ideal for installation into campers, recreational vehicles and marine applications.
No voltage drop compared to battery isolation diodes (0.6V)
Complies with ISO8846 ignition protection for use in engine rooms.
Rugged fiberglass reinforced nylon housing.
Built-in LED indication (illuminates when VSR is on).
Surface or panel mount options provide flexibility during installation.
Optional storage mode allows for zero power consumption when engine is off.
Size: about 68*68*53mm/2.68*2.68*2.09in
Nominal voltage: DC 12V
Combined voltage: DC 13.3V
Open circuit voltage: DC 12.8V
Continuous rating: DC 125A
Intermittent rating: DC 140A
Power consumption: 10mA (standby) / 330mA (use) / 0mA (storage)
Wiring Post: M6(1/4″)
Waterproof rating: IP67
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 X Relay
4 X Screws
1 X Instruction Manual
