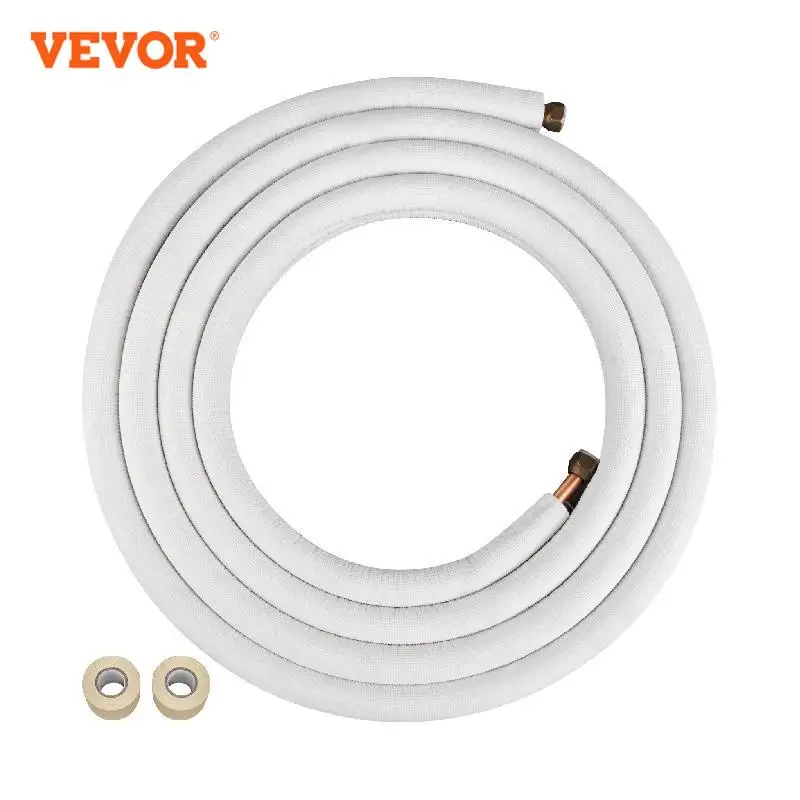

VEVOR Copper Line Set Copper Pipe for Mini Split Air Conditioner
Roll over image to zoom in
$202.98 – $709.89 (-42%)
VEVOR Copper Line Set Copper Pipe for Mini Split Air Conditioner
Product Description
16/49.2/24.6/25ft Mini Split Copper Line Set
Here we will offer you a high-quality cooper pipe line set for mini split air conditioner. It is quick to install and we will send you 2pcs of tapes. This set is suitable for most types of 9000/12000/8000/24000 BTU mini split air conditioners.
- Premium Copper Tubes
- Heat Insulation Cover
- Flaring & Accessories
- Effortless Assembly
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR’s products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features

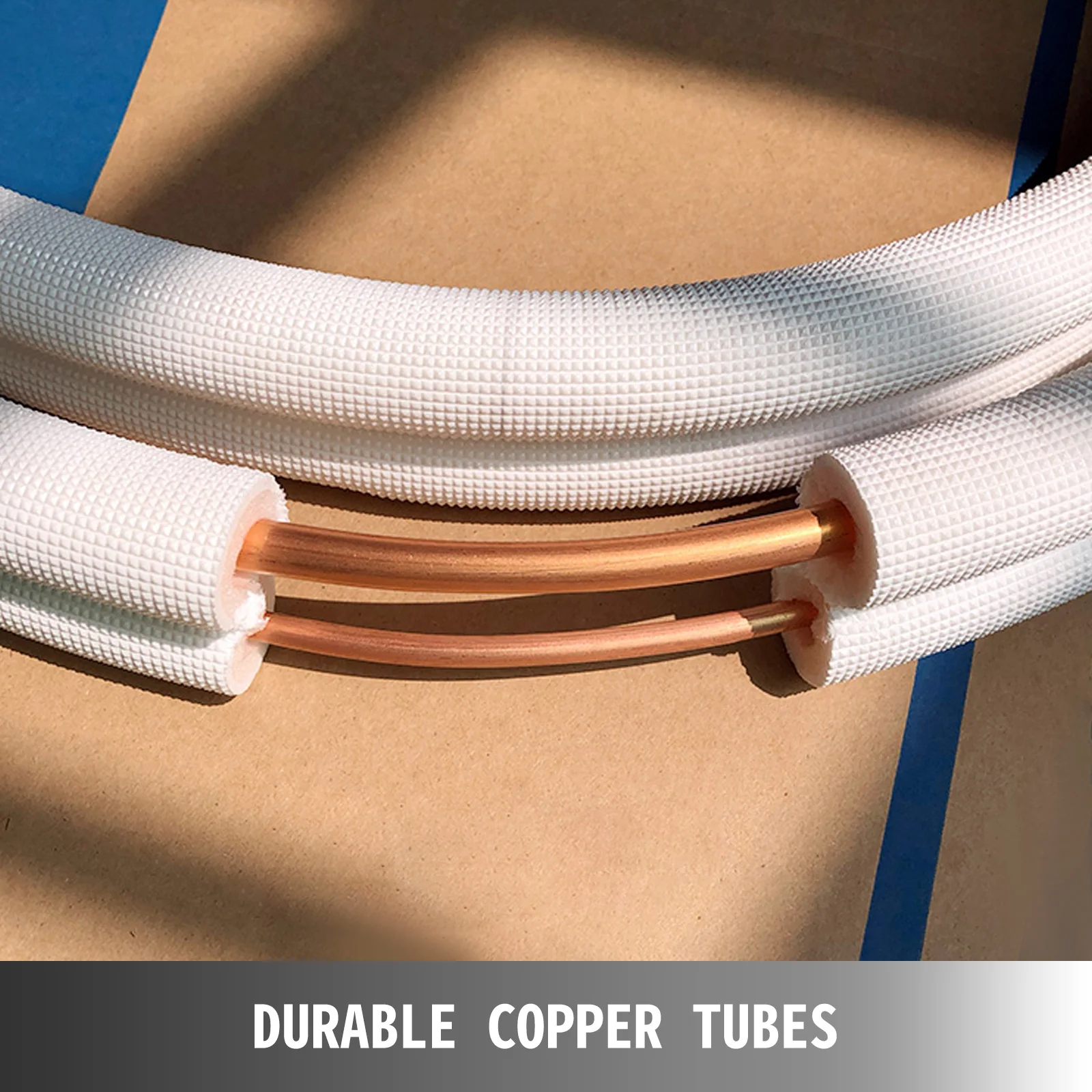

Durable Copper Tubes
This mini split line kit adopts high-quality copper tubes, which have high strength, hardness, good thermal conductivity, and corrosion-resistant.

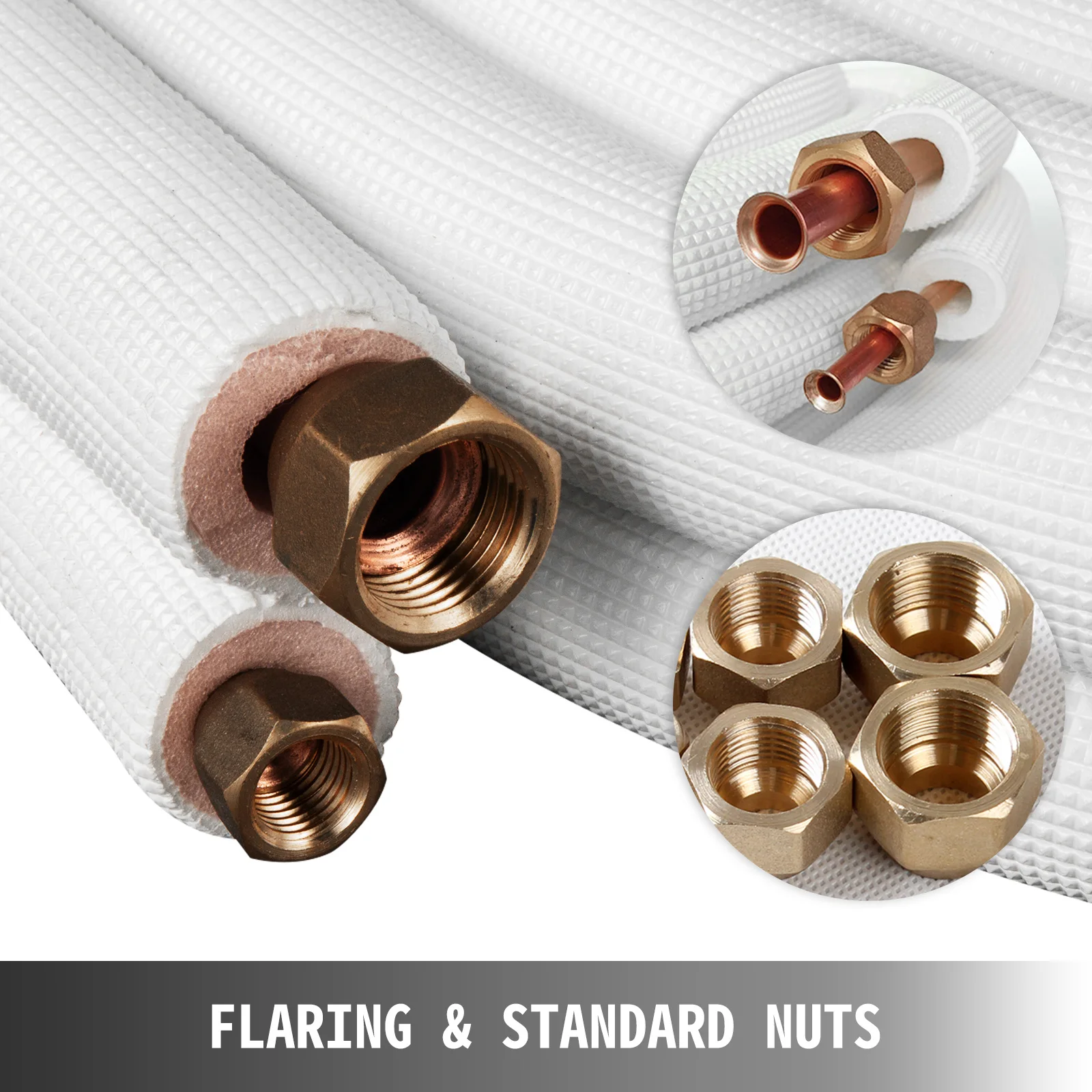

Flaring & Standard Nuts
The ends of the tubes are flared perfectly; it is smooth and has no cracks for easy use. The nuts on both ends are standard 1/2″ & 1/4″.

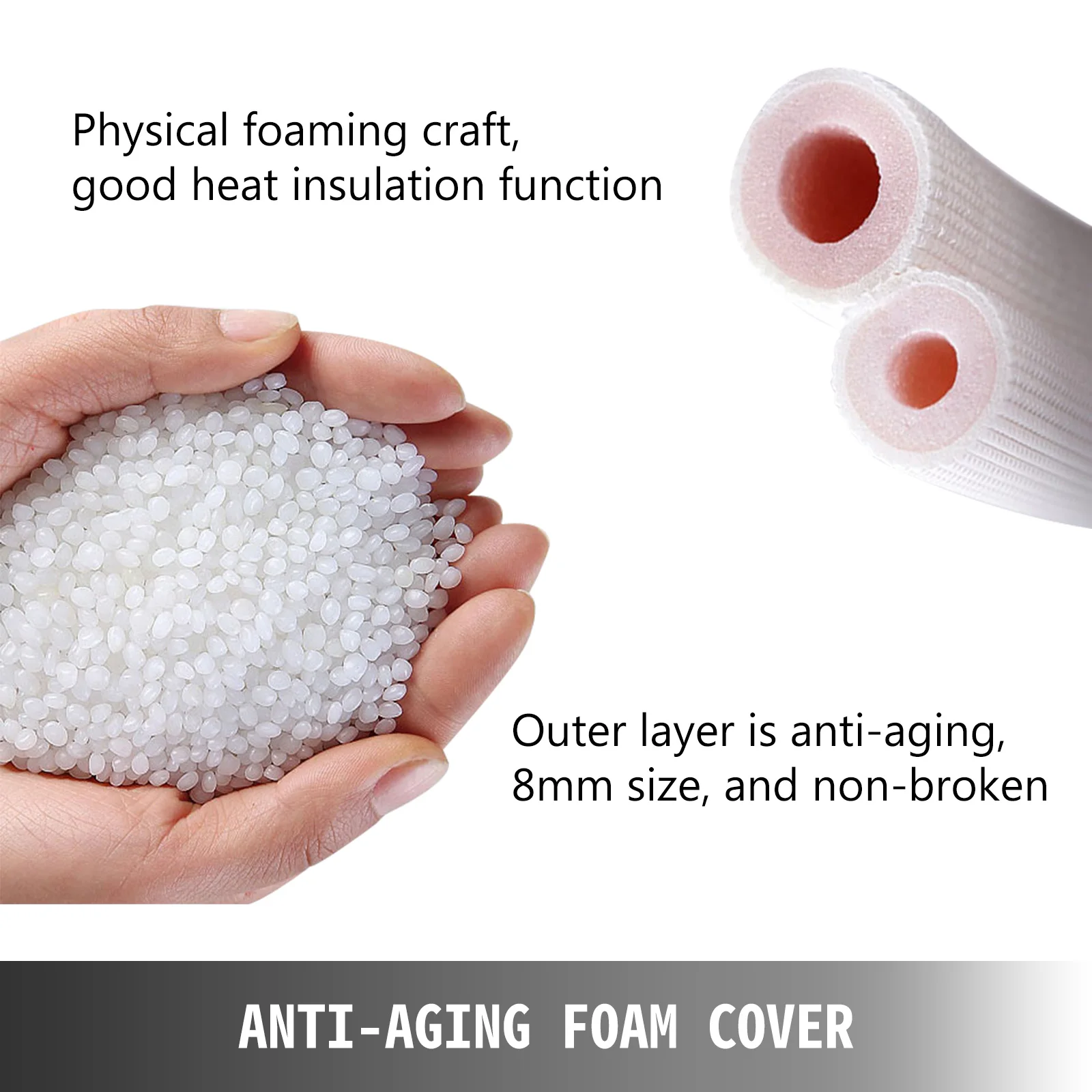

Anti-Aging Foam Cover
Copper pipes are protected with a double-layer cover. The physical foaming craft offers heat insulation function, anti-aging, and reduce the shock.
Low & High-Pressure Pipe
This line set for mini split includes low & high-pressure tubes with different diameters: φ6 mm & 12.7/9.5/15.8 mm. Tubes can hold pressure up to 60 kg.
Quick & Easy Installation
Installation of the mini split air conditioner line set is easy and quick. Firstly, roll out tubes and then connect them to the air conditioner.

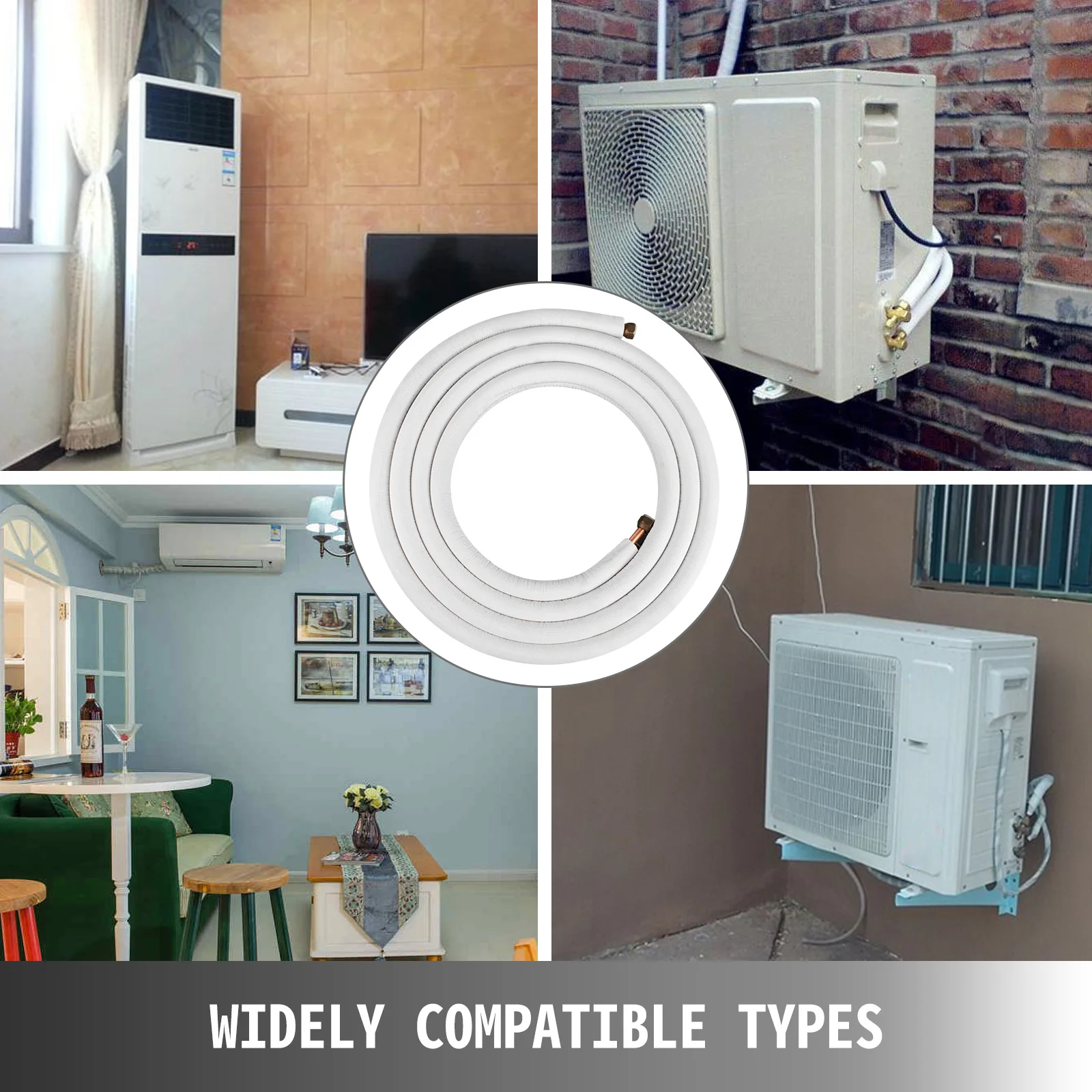

Widely Compatible Types
This mini split copper line is suitable for most types of mini split air conditioners(12000BTU), or air conditioning system requiring 1/4” & 1/2” setting.

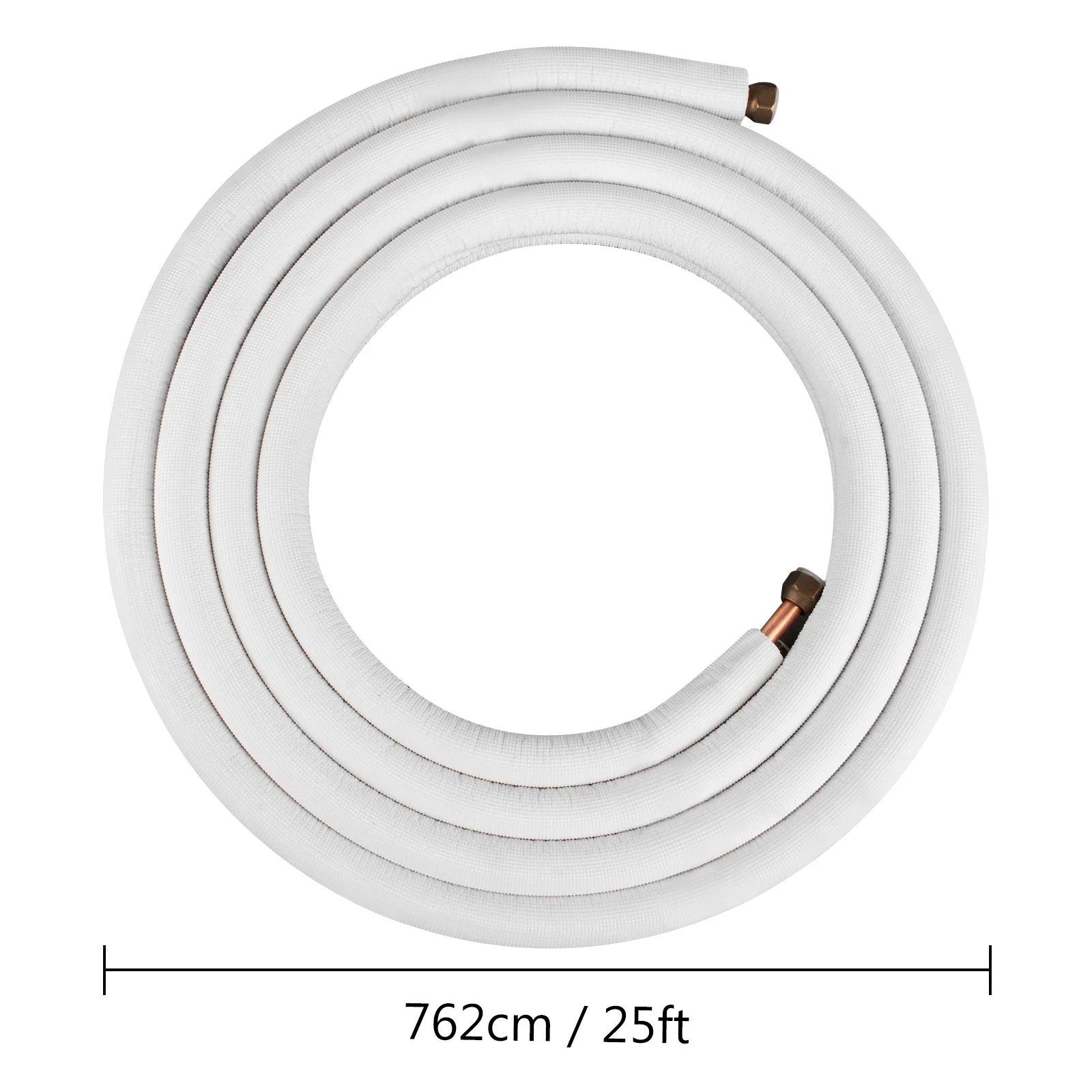

25Ft Type A
- Color: White
- Material: Copper
- Tubes Length: 25FT / 7.5M
- Tube Thickness: 0.6 mm / 0.02 inch
- Pipe Diameter: 6 mm(0.24 inch) & 12.7 mm(0.5 inch)
- Nuts Size: 1/2″; 1/4″
- Tube Pressure: Max.60 kg
- Air Conditioner: 12000 or 18000BTU
Package Content
- 2 x Copper Tubes(1/2″ & 1/4″Nuts)
- 2 x Tape(11M Length)
50Ft Type A
- Color: White
- Material: Copper
- Tubes Length: 50ft
- Pipe Diameter: 6 mm(0.24 inch) & 12.7 mm(0.5 inch)
- Nuts Size: 1/2″; 1/4″
- Tube Pressure: Max.60 kg
- Air Conditioner: 12000 or 18000BTU
Package Content
- 2 x Copper Tubes(1/2″ & 1/4″Nuts)
- 2 x Tape(11M Length)
50Ft Type B
- Model: 1/4 3/8 50FT
- Pipe Material: Copper
- Pipe Length: 50 ft/15 m
- Pipe OD: 1/4″ & 3/8″
- Suitable Mini Split Capacity: Max. 9000 BTU
- Pipe Thickness: 0.02″/0.5 mm
- Insulated Cotton Thickness: 0.31″/8 mm
- Pressure Bearing Capacity: 132.3 lbs/60 kg
- Color: White
Package Content
- 2 x Copper Pipes
- 2 x Tapes (36.1 ft/11 m)
25Ft Type B
- Model: 1/4 3/8 25FT
- Pipe Material: Copper
- Pipe Length: 25 ft/7.5 m
- Pipe OD: 1/4″ & 3/8″
- Suitable Mini Split Capacity: Max. 9000 BTU
- Pipe Thickness: 0.02″/0.5 mm
- Insulated Cotton Thickness: 0.31″/8 mm
- Pressure Bearing Capacity: 132.3 lbs/60 kg
- Color: White
Package Content
- 2 x Copper Pipes
- 2 x Tapes (36.1 ft/11 m)
16Ft Type A
- Model: 1/4 1/2 16FT
- Pipe Material: Copper
- Pipe Length: 16 ft/4.9 m
- Pipe OD: 1/4″ & 1/2″
- Suitable Mini Split Capacity: 12000/18000 BTU
- Pipe Thickness: 0.02″/0.6 mm
- Insulated Cotton Thickness: 0.31″/8 mm
- Pressure Bearing Capacity: 132.3 lbs/60 kg
- Color: White
Package Content
- 2 x Copper Pipes
- 1 x Wall Sleeve Cylinder
- 1 x Condensate Hose (6.6 ft/2 m)
- 1 x Electrical Cable (19.7 ft/6 m)
- 2 x Tapes (36.1 ft/11 m)
- 2 x Packs of Wall Seal Putty
16Ft Type B
- Model: 3/8 5/8 16FT
- Pipe Material: Copper
- Pipe Length: 16 ft/4.9 m
- Pipe OD: 3/8″ & 5/8″
- Suitable Mini Split Capacity: Max. 24000 BTU
- Pipe Thickness: 0.02″/0.5 mm; 0.03″/0.8 mm
- Insulated Cotton Thickness: 0.31″/8 mm
- Pressure Bearing Capacity: 132.3 lbs/60 kg
- Color: White
Package Content
- 2 x Copper Pipes
- 1 x Wall Sleeve Cylinder
- 1 x Condensate Hose (6.6 ft/2 m)
- 1 x Electrical Cable (19.7 ft/6 m)
- 2 x Tapes (36.1 ft/11 m)
- 2 x Packs of Wall Seal Putty
25Ft Type C
- Model: 1/4 3/8 25FT
- Pipe Material: Copper
- Pipe Length: 25 ft/7.5 m
- Pipe OD: 1/4″ & 3/8″
- Suitable Mini Split Capacity: Max. 9000 BTU
- Pipe Thickness: 0.02″/0.5 mm
- Insulated Cotton Thickness: 0.31″/8 mm
- Pressure Bearing Capacity: 132.3 lbs/60 kg
- Color: White
Package Content
- 2 x Copper Pipes
- 1 x Wall Sleeve Cylinder
- 1 x Condensate Hose (6.6 ft/2 m)
- 1 x Electrical Cable (19.7 ft/6 m)
- 2 x Tapes (36.1 ft/11 m)
- 2 x Packs of Wall Seal Putty
50Ft Type C
- Model: 3/8 5/8 50FT
- Pipe Material: Copper
- Pipe Length: 50 ft/15 m
- Pipe OD: 3/8″ & 5/8″
- Suitable Mini Split Capacity: Max. 24000 BTU
- Pipe Thickness: 0.02″/0.5 mm; 0.03″/0.8 mm
- Insulated Cotton Thickness: 0.31″/8 mm
- Pressure Bearing Capacity: 132.3 lbs/60 kg
- Color: White
Package Content
- 2 x Copper Pipes
- 2 x Tapes (36.1 ft/11 m)
- 1 x Condensate Hose (6.6 ft/2 m)
- 1 x Electrical Cable (19.7 ft/6 m)
- 2 x Tapes (36.1 ft/11 m)
- 2 x Packs of Wall Seal Putty
25Ft Type D
- Model: 3/8 5/8 25FT
- Pipe Material: Copper
- Pipe Length: 25 ft/7.5 m
- Pipe OD: 3/8″ & 5/8″
- Suitable Mini Split Capacity: Max. 24000 BTU
- Pipe Thickness: 0.02″/0.5 mm; 0.03″/0.8 mm
- Insulated Cotton Thickness: 0.31″/8 mm
- Pressure Bearing Capacity: 132.3 lbs/60 kg
- Color: White
Package Content
- 2 x Copper Pipes
- 2 x Tapes (36.1 ft/11 m)
- 1 x Condensate Hose (6.6 ft/2 m)
- 1 x Electrical Cable (19.7 ft/6 m)
- 2 x Tapes (36.1 ft/11 m)
- 2 x Packs of Wall Seal Putty
Features & Details
- 【PREMIUM COPPER TUBES】- Color: White; Tubes Length: 16/25/50ft; Material: Copper; Nuts Size: 1/4″ & 1/2″/3/8″ & 1/4″/5/8″; Tube Thickness: 0.6/0.5/0.8 mm; Tube Diameter: 6 mm & 12.7/9.5/15.8 mm; Pressure: 60 kg; This line set tubes are made of excellent & thick copper, which is corrosion-resistant, no leaks, and non-broken.
- 【HEAT INSULATION COVER】- Copper tubes of this mini split line set are protected with an outer foam layer. The foam layer is heat insulation, anti-freezing, shock absorption, and anti-aging.
- 【FLARING DESIGN & TAPES】- This copper line set is flared perfectly for connection and no leakage. We also offer you 2pcs of tapes in the package box.
- 【EFFORTLESS ASSEMBLY】- It is easy & fast to assemble this kit. Tie the low & high-pressure pipe up with tapes, and follow the instructions pictures.
- 【WIDE COMPATIBILITY】- This insulated line set is compatible with most kinds of 9000/12000/8000/24000 BTU mini split air conditioners, such as Mitsubishi, LG, Daiken, etc. Or it is suitable for the air conditioning system requiring 1/4” & 1/2”/1/4” & 3/8”/5/8″ setting.
Additional information
| Origin | Mainland China |
|---|---|
| Certification | CE |
| Color | White |
| Compressor Type | no |
| Feature | With 2pcs of Tapes |
| Feature of Copper | Corrosion-resistant;No leaks,Non-broken |
| Ends of The Tubes | Flared |
-
